How does PadFinder work with other boxes like Infinity, Furious, ET-box etc.? - GSM-Forum

Multi-box TEAM · 03-25-2008, 15:20

PadFinder is fully compatible with other boxes. The box can work as an absolutely stand-alone device. It means that working with other boxes you can connect PadFinder on USB and get in system a universal comport. You can use PadFinder to find the pinout for almost ANY cell phone ( Maxon, Philips, LG, Chinese phones and so on ) or set it manually if you already know the pinout in the phone ( for example, you know the correct pinout on the phone with a new processor ) you can point in the right place and RX / TX pins in two clicks! All you need is just to connect the phone to PadFinder, find the necessary pinout automatically ( using our program ) or manually ( in case if the automatic search is not supported for that CPU type ). After starting the program of other developers ( infinity box, et-box, furios, thunderstorm etc. ) you need to choose the comport with the connected PadFinder on it and start working.

In addition, PadFinder is compatible with the number of the most popular RJ45 cables: Unibox, Multi-box, UFS, JAF, Infinity-box, Griffin, Thunderstorm, Furious-box, SPT-box and other RJ45 cables with compatible Gnd/Vpp pins!

You can also use PadFinder not only for searching the pinouts, but also for compatibility cables. With a cable that works with one box, but does not work with the other - you can completely customize it to your needs in only couple of clicks!

PadFinder is a really Universal cable-box - can work with all brands!

After you have successfully found the pinout, you just run the appropriate soft of any other developer that you have ( Infinity, JAF, Thunderstorm, ET-box, Furious ) and start working!

IMPORTANT: NO NEED FOR ANY EXTRA ACTIVATIONS to work with other boxes!

PROCEDURE OF PadFinder's WORK WITH INFINITY-BOX

1. Connect PadFinder to PC via an ordinary AB USB cable
2. Connect the DB26 cable to PadFinder ( "Special" socket ) and to the phone.
3. Find the pinout using PadFinder ( see the manual ) OR use the CLIP function ( see the manual ) to save your time and for more convenience if the phone is MTK-based!
4. Connect Infinity-box via an ordinary AB USB cable
5. Start the appropriate soft of Infinity ( for example, Chinese Miracle )
6. In the Device Manager find the appropriate PadFinder USB Serial Port among the Ports ( COM & LPT ) - in our example it is PadFinder USB Serial Port ( COM3 )

7. Enter the "Settings" bookmark in "Chinese Miracle" and choose the found PadFinder USB Serial Port ( COM3 )

8. In "Chinese Miracle" enter the "Service" bookmark and press "Read detailed information" button.

9. The soft will read all the info from the phone! See the log below:

Quote:

COM3 [VCP0] selected

Quote:

Device: Autodetect 6205-6227 NOR
Checking data, wait...
advanced flash detection active
Action: read/check detailed information
Boot...
Press and HOLD Power button now !
baud autodetection active
19200
Connecting, wait...
Initializing[6226:8A02:8A01]...
chip: 0031:94C1:23CA
high speed disabled
boot step size: 0002
Release Power button now !
Boot Done
Initialize...
detecting chip #00 in region #00...
flash: 89880F00010001:89880F00000000
flash: Intel Intel/Sharp ext [def 0004x008000 007Fx020000] 16Mb
detecting chip #01 in region #00...
flash: 89880F00010001:89880F00000000
flash: Intel Intel/Sharp ext [def 0004x008000 007Fx020000] 16Mb
number of flash chip/regions detected: 02/01
Initialize Done
Set baud...
115200
Set baud Done
Identification...
device parameters autodetection in progress..
detecting chip #00 in region #00...
flash: 89880F00010001:89880F00000000
flash: Intel Intel/Sharp ext [def 0004x008000 007Fx020000] 16Mb
detecting chip #01 in region #00...
flash: 89880F00010001:89880F00000000
flash: Intel Intel/Sharp ext [def 0004x008000 007Fx020000] 16Mb
it's time to stop: 2A0000EA18F09FE518F09FE518F09FE518F09FE518F09FE5
number of flash chip/regions detected: 01/01
total flash region size: 01000000
detect device identification#1...
detection phase #1...
detect device identification#1 finished
identification#1 structure: 2nd [enhanced] generation
security area#1 Ok
security area backup saved: id.81F69382.[MY6226_PCB01_GPRS_MT6226_S01.DM200_V008_1_WIN_WISR TON.BIN_FB4228FD].rpl
New firmware detected:
MY6226_PCB01_GPRS_MT6226_S01.DM200_V008_1_WIN_WISR TON.BIN
- make "Repair security area" operation
- send "backup_system_log_..." file to support
- make "Read full flash" operation
- send flash backup file(s) to support
- include in your e-mail full text from phone back label (phone name etc.)
identification#1 detection finished
device-id: 81F69382
identification#1 protocol ver: 04
ver. sw1: MY6226_PCB01_GPRS_MT6226_S01.DM200_V008_1_WIN_WISR TON.BIN
ver. sw2: DM200.V008.1.WIN.WISRTON
ffs offset/size: 00F00000/00100000
detect device identification#2...
detection phase #1...
.
warning: optional information not found
detect device identification#2 finished
detecting eeprom/ffs area in 1 chip(s)...
standard eeprom/ffs offset detected: 00F00000
flash: 89880F00010001:89880F00000000
checking area[00000000]: 00000000-00FFFFFF...
eeprom/ffs found near: 00F00000
detecting eeprom/ffs size...
eeprom/ffs size: 00100000
ffs chip: 00
eeprom/ffs area: 00000000:00F00000-00FFFFFF
detecting ffs structure pass 1...
detect standard fat location pass #1...
.................................................. ..........
detect extended fat location pass #1...
detect standard fat offset pass #1...
detect standard fat data...
fat layout detection complete
ffs element #1 detected ok
file saved: backup_system_log_81F69382_MY6226_PCB01_GPRS_MT622 6_S01.DM200_V008_1_WIN_WISRTON.BIN_FB4228FD_200803 28-133745.B0X.bin
Finished, time used: 312 sec
Remove/Install battery now !

PadFinder - works with all other boxes and softwares!

GSMtricks · 03-25-2008, 15:51

Quote:

Originally Posted by MrDevil

Very nice work,And seems that is a very useful device.
good luck

Yes and that is why we do this device. Is really uniqume!

gsmbac · 03-25-2008, 15:57

it means really universal,
very good work multibox team.
br

Multi-box TEAM · 03-28-2008, 15:09

Quote:

Originally Posted by gsmbac

it means really universal,
very good work multibox team.
br

Yes! You can work with any soft and any box!

ags_nadhif · 03-28-2008, 15:40

thanks for multi team,in the fact padfinder is universal finder who can work with other boxes like my infinity.thanks for guide

br,.

Multi-box TEAM · 03-28-2008, 16:12

Quote:

Originally Posted by ags_nadhif

thanks for multi team,in the fact padfinder is universal finder who can work with other boxes like my infinity.thanks for guide

br,.

If you compare the functions you will see a BIG difference. A lot of unique things like:
- ability to work like clip
- can work standalone like any chinese box for chinese phones
- can work with many other brands
- multi-functional ( check "Main Tool" description )
- works with Multi-box and Multi-box LITE without any extra power and extra tools and extra activations
- works with all others boxes and softwares etc.

If you will read all docs and manuals for this box, if you will check all video files and if you stay in this section more ( few days ) - you will see how GOOD is this new box.

shawgsm · 04-04-2008, 18:15

Quote:

Originally Posted by Multi-box TEAM

PadFinder is fully compatible with other boxes. The box can work as an absolutely stand-alone device. It means that working with other boxes you can connect PadFinder on USB and get in system a universal comport. You can use PadFinder to find the pinout for almost ANY cell phone ( Maxon, Philips, LG, Chinese phones and so on ) or set it manually if you already know the pinout in the phone ( for example, you know the correct pinout on the phone with a new processor ) you can point in the right place and RX / TX pins in two clicks! All you need is just to connect the phone to PadFinder, find the necessary pinout automatically ( using our program ) or manually ( in case if the automatic search is not supported for that CPU type ). After starting the program of other developers ( infinity box, et-box, furios, thunderstorm etc. ) you need to choose the comport with the connected PadFinder on it and start working.

In addition, PadFinder is compatible with the number of the most popular RJ45 cables: Unibox, Multi-box, UFS, JAF, Infinity-box, Griffin, Thunderstorm, Furious-box, SPT-box and other RJ45 cables with compatible Gnd/Vpp pins!

You can also use PadFinder not only for searching the pinouts, but also for compatibility cables. With a cable that works with one box, but does not work with the other - you can completely customize it to your needs in only couple of clicks!

PadFinder is a really Universal cable-box - can work with all brands!

After you have successfully found the pinout, you just run the appropriate soft of any other developer that you have ( Infinity, JAF, Thunderstorm, ET-box, Furious ) and start working!

IMPORTANT: NO NEED FOR ANY EXTRA ACTIVATIONS to work with other boxes!

PROCEDURE OF PadFinder's WORK WITH INFINITY-BOX

1. Connect PadFinder to PC via an ordinary AB USB cable
2. Connect the DB26 cable to PadFinder ( "Special" socket ) and to the phone.
3. Find the pinout using PadFinder ( see the manual ) OR use the CLIP function ( see the manual ) to save your time and for more convenience if the phone is MTK-based!
4. Connect Infinity-box via an ordinary AB USB cable
5. Start the appropriate soft of Infinity ( for example, Chinese Miracle )
6. In the Device Manager find the appropriate PadFinder USB Serial Port among the Ports ( COM & LPT ) - in our example it is PadFinder USB Serial Port ( COM3 )

7. Enter the "Settings" bookmark in "Chinese Miracle" and choose the found PadFinder USB Serial Port ( COM3 )

8. In "Chinese Miracle" enter the "Service" bookmark and press "Read detailed information" button.

9. The soft will read all the info from the phone! See the log below:

[FONT=Tahoma]
PadFinder - works with all other boxes and softwares!

i follow the instruction but it wont detect.the port of my padfinder is port 3 so i select in infinity software com 3 then read details of the phone but nothing happen.also i tried using padfinder software for pinout detection it wont detect cect q380 phone model,always failed.pls can you guide me exact procedure as i read manual before doing it.

br

GSMtricks · 04-05-2008, 08:25

Quote:

Originally Posted by shawgsm

i follow the instruction but it wont detect.the port of my padfinder is port 3 so i select in infinity software com 3 then read details of the phone but nothing happen.also i tried using padfinder software for pinout detection it wont detect cect q380 phone model,always failed.pls can you guide me exact procedure as i read manual before doing it.

br

But why you not read docs? We already post all manuals about it.

cbz_4383 · 04-05-2008, 11:26

@shawgsm
after you find pinout click on unibox mode button now you are ready to use that pinout with any tool.

Multi-box TEAM · 04-05-2008, 11:57

Quote:

Originally Posted by cbz_4383

@shawgsm
after you find pinout click on unibox mode button now you are ready to use that pinout with any tool.

You are absolutely right! You can also use CLIP function to save your time and make your work easier with ALL Chinese MTK-based phones (other processor types are currently under development).

shawgsm · 04-05-2008, 12:25

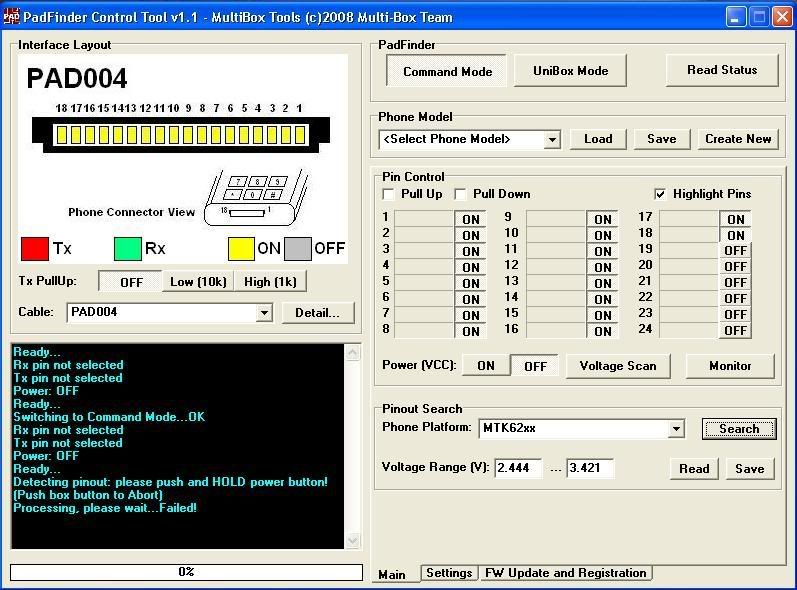

i have read docs,but failed in searching pinout.it will run until 50% but fail,i tried three units.here is the logs for ztc c2000

br

GSMtricks · 04-05-2008, 12:38

Quote:

Originally Posted by shawgsm

i have read docs,but failed in searching pinout.it will run until 50% but fail,i tried three units.here is the logs for ztc c2000

br

1. Are you sure that power cables are correct connected?
2. Are you sure that this phone is MTK?

shawgsm · 04-05-2008, 12:41

yes i have connected cable properly & also i selected different platform but no success,even the two model like cect k808 & cect q380 it wont detect at all even different platform

br

GSMtricks · 04-05-2008, 12:50

Quote:

Originally Posted by shawgsm

yes i have connected cable properly & also i selected different platform but no success,even the two model like cect k808 & cect q380 it wont detect at all even different platform

br

Did you have success with any others models before?

shawgsm · 04-05-2008, 13:19

i have only try three models bro.cect q380,ztc c2000,cect k808,that is the problem pinout could not be detected,my friend try with zte a35 pinout was detected but when he use infinity software it won't boot up.i will try to ask him logs so that i could show it here

br
